Series DF With Non Magnetic Aluminium Body

1000.00 - 5000.00 INR/Piece

Get a Price/Quote

Product Details:

Hardness 98%
Product Type Series DF With Non Magnetic Aluminium Body
Material Steel
Function Easy To Use
Usage For Laboratory And Industrial Use
Color Green And Silver
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Series DF With Non Magnetic Aluminium Body Price And Quantity

Minimum Order Quantity 100 Piece
Price Range 1000.00 - 5000.00 INR/Piece

Series DF With Non Magnetic Aluminium Body Product Specifications

Function Easy To Use
Color Green And Silver
Hardness 98%
Product Type Series DF With Non Magnetic Aluminium Body
Usage For Laboratory And Industrial Use
Material Steel

Series DF With Non Magnetic Aluminium Body Trade Information

Payment Terms Telegraphic Transfer (T/T) Cheque
Supply Ability 100 Piece Per Day
Delivery Time 2-3 Days
Main Export Market(s) Western Europe Australia North America Eastern Europe Middle East Central America South America Asia Africa
Main Domestic Market All India

Product Description

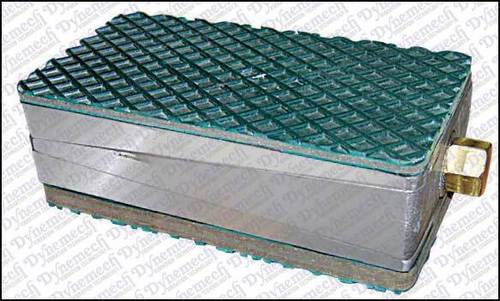

Series DF with Non magnetic aluminum body

Non magnetic aluminum body wedge mount for pharmaceutical, food and beverages industries and laboratories.

Technical Specifications

Model	Load Kg/pc	Length (L) mm	Width (B) mm	Height (H) at mean position (mm)	Adjust range (mm)	Applications
DF1-u DF2-u DF3-u DF4-u DF5-u DF6-u DF7-u	400 900 1500 3200 4000 6400 9600	100 150 200 200 200 250 300	55 75 100 200 250 320 400	60 63 69 71 93 98 98	8 10 10 12 18 18 20	Top anti skid plate Da2 & bottom insulation plate Du. Application: Tool Room Machines, Plastic Injection Moulding machines, Pressure Die Casting machines, Shaper, printing and Textile Machines etc.
DF1-m DF2-m DF3-m DF4-m DF5-m DF6-m DF7-m	500 1200 2000 4000 5000 8000 12000	105 150 200 200 200 250 300	55 75 100 200 250 320 400	54 57 63 65 87 92 92	8 10 10 12 18 18 20	Top anti skid plate Da1 & bottom insulation plate Dm. Applications: Lathe Machines, Machining Centres, Milling machines, Precision Grinding Machines, Drilling machines, turning Centres, Transfer Lines etc.
DF1-s2 DF2-s2 DF3-s2 DF4-s2 DF5-s2 DF6-s2 DF7-s2	350 800 1400 2800 3500 5500 8500	105 150 200 200 200 250 300	55 75 100 200 250 320 400	64 67 73 75 97 102 102	8 10 10 12 18 18 20	Top anti skid plate Da1 & bottom insulation plate Ds2. Applications: Medium presses, Punching Presses, Centreless Grinding Machines, Gear Shapers, High Speed machines on upper floors.
DF1-i DF2-i DF3-i DF4-i DF5-i DF6-i DF7-i	600 1500 2500 5200 6500 10000 15000	105 150 200 200 200 250 300	55 75 100 200 250 320 400	70 73 79 81 103 108 108	8 10 10 12 18 18 20	Top anti skid plate Da2 & bottom insulation plate Di. Applications: Power presses, Stamping Machines, Shearing Machines, Punching Machines. For machines with high vertical impact.
DF1-p DF2-p DF3-p DF4-p DF5-p DF6-p DF7-p	180 400 725 1450 1800 2900 4400	105 150 200 200 200 250 300	55 75 100 200 250 320 400	59 62 68 70 92 97 97	8 10 10 12 18 18 20	Top anti skid plate Da1 & bottom insulation plate Dp. Applications: Measuring & testing Machines, Surface Plates, Hardness Testers, Microscopes, EDM Machines, Profile Projectors etc.
